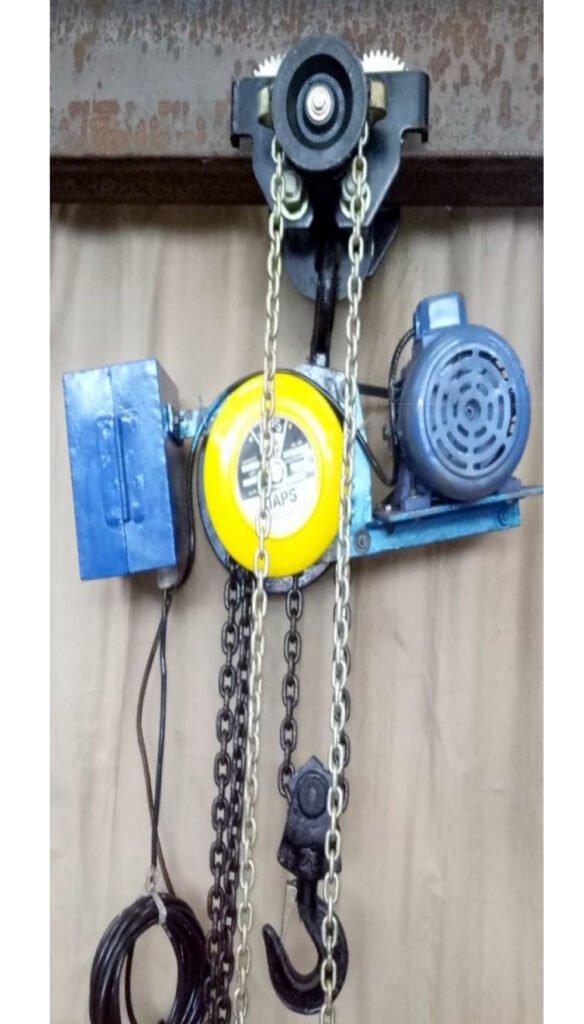

Electrical Chain Pulley Block

Salient Features

  • Tested at 25% overload
  • Load Chain: Grade 80 Alloy Steel Material as per IS: 6216
  • Load Chain Wheel: S.G. Iron Casting – accurately pocketed
  • Gears: Alloy steel material, precise machined, gear hobbed & case hardened – duly annealed.
    Gears are lubricated with semi-liquid grease instead of oil, which prevents leakage, eliminates oil level checks,
    and clings to the gears even after long idle periods.
  • Hooks: As per IS: 15560-2005
  • Motor: Foot mounted motor – operating at 415 Volts, 3 Phase / 1 Phase, 50 Hz AC supply
  • Driven on V-Belt (Ecodrive Fenner) / Chain Drive
  • Operational: Through push button station from ground floor
  • Braking Mechanism: Screw & Friction Disc Type – self actuating / disc type brake
  • Control Panel Unit: Totally enclosed to protect from weather,
    giving output at 110 Volts to the operational control station (push button station)

FAQ

Frequently Asked Questions

At JAPS Project, we understand that our customers may have queries regarding our products, services, and support. Our FAQ section is designed to provide quick, clear, and reliable answers to the most common questions about cranes, material handling equipment, water treatment solutions, and after-sales support.Whether it’s about product selection, customization, installation, or maintenance, you’ll find helpful insights here to make informed decisions with confidence.

An Electrical Chain Pulley Block is a powered hoisting device designed for lifting heavy loads with minimal manual effort, ideal for industrial applications.

JAPS Project offers Electrical Chain Pulley Blocks in various capacities and lifting heights to suit different operational requirements.

These hoists are widely used in warehouses, workshops, assembly lines, and construction sites for efficient material handling.

Yes, they are equipped with overload protection, durable chains, and high-grade materials for maximum safety and long-term reliability.

Yes, we provide custom lifting capacities, heights, and speeds to meet specific client requirements.
