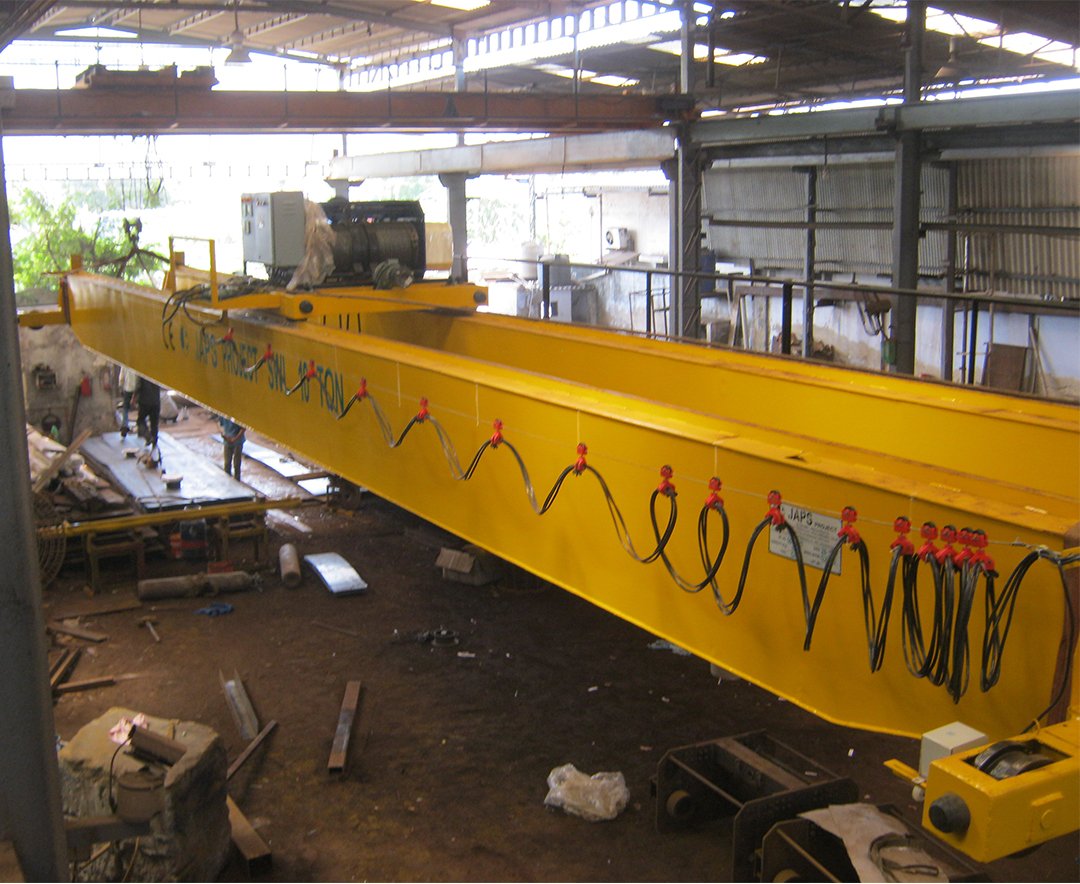

Japs Project is an ISO 9001:2015 Certified Company engaged in manufacturing and exporting of Single/Double Girder Overhead Cranes, in SWL’s ranging from 0.5 MT to 70 MT. EOT Cranes manufactured using quality raw materials by JAPS Project are extensively used in the warehouse, workshop, and stock ground of industrial and mining enterprises for loading, unloading or relocating heavy load.
We can offer a very large range of Spans and Height of lift as well as high speeds. We can also provide multiple hoisting trolleys running on the same bridge. Our products pertain to global standards of quality and suffice the various requirements of the clients. We employ stringent quality checks to ensure that we deliver flawless products to the customers.
| Specifications | Single Girder | Double Girder |
|---|---|---|
| Safe Working Load | 05 MT TO 15 MT | 05 MT TO 70 MT |
| Span | 2 Mtr to more than 15 Mtr | 2 Mtr to more than 35 Mtr |
| Height of Lift | As per customer specifications | As per customer specifications |
| Design Standards & Materials | M5, M7, M8 as per IS 3177 / IS807, MS IS2062 E250, Alloy Steel IS4460, Hoist IS 3938 | M5, M7, M8 as per IS 3177 / IS807, MS IS2062 E250, Alloy Steel IS4460, Hoist IS 3938 |
| Speeds | As per client’s application | As per client’s application |
| Crane Control | Pendant / Radio Remote / AC Drives | Pendant / Radio Remote / Cabin Control |
| Drive System | Twin Drive with Squirrel Cage Motor / Slip Ring Motor + Fail Safe Brakes | Twin Drive with Squirrel Cage Motor / Slip Ring Motor + Fail Safe Brakes |
| Motors | Crane Duty Motors, IP55, S4/S5 duty, IS325 compliant | Crane Duty Motors, IP55, S4/S5 duty, IS325 compliant |
| Brakes | ACEM / DCEM Disc Type + Hydraulic Thrusters | ACEM / DCEM Disc Type + Hydraulic Thrusters |
| Power Supply System | C-Rail / Drag Chain / Bus Bars / Trailing Cable | C-Rail / Drag Chain / Bus Bars / Trailing Cable |
| Sr. No. | Item Descriptions | Make / Standard |
|---|---|---|
| 1 | Electric Motors | Crompton Greaves Ltd S4/S5 Crane Duty Motors |
| 2 | A. C. Drives | CGL / L&T / SCH. |
| 3 | Contractors | C & S / L & T |
| 4 | Cables | ISI Marked make (KEI, Polycab, Finolex) |
| 5 | M.S. Plates | As per IS: 2062, Grade E250 |
| 6 | Bearings | FAG / SKF |
| 7 | Wire Rope | Usha Martin |
| 8 | Limit Switch for Hoist Motion | Bohmen |
| 9 | Limit Switch for C.T. & L.T. Motion | E.M.C. |
| 10 | Painting | 2 Coat of primer & 2 coat of Epoxy Paint |
| 11 | Brakes | Electromach / JAPS |
| 12 | Panels | JAPS |
At JAPS Project, we understand that our customers may have queries regarding our products, services, and support. Our FAQ section is designed to provide quick, clear, and reliable answers to the most common questions about cranes, material handling equipment, water treatment solutions, and after-sales support.Whether it’s about product selection, customization, installation, or maintenance, you’ll find helpful insights here to make informed decisions with confidence.
An EOT (Electric Overhead Traveling) Crane is used for lifting and moving heavy loads in warehouses, workshops, factories, and industrial plants.
JAPS Project manufactures EOT Cranes ranging from 0.5 MT to 70 MT, customizable as per client needs.
Yes, we provide both single girder and double girder EOT Cranes depending on space, load, and operational requirements.
All our cranes undergo strict quality checks, load testing, and third-party inspections before dispatch.
Yes, we offer installation, maintenance, and genuine spare parts support to ensure long-lasting performance.
